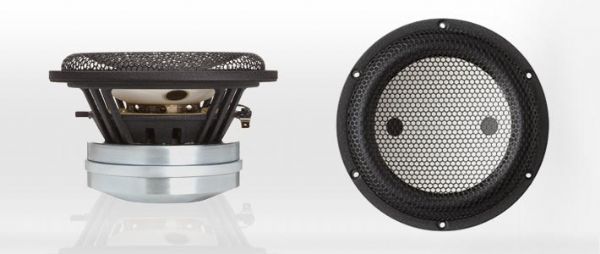

C173-6-090Highlights:- 7 inch midrange with tissue suround with high efficiency for 3 way designs
- large sized voice coil with 55mm titanium voice coil former for high midrange resolution
- big, underhung 120mm Neodymium magnet system for very low distortion
- Anti-resonant cutout fills in the ceramic dome provide high damping of the 5 kHz dome resonance
Closed Box design parameters:Vb: 2L, -13dB @ 80Hz, F-3dB: 160Hz, Q: 0.71 (typical) Vb: 4.5L, -10dB @ 80Hz, F-3dB: 170Hz, Q: 0.50 (clean transient response) Mechanical Data Overall diameter/square mm 173 Cutout diameter/square mm 145.6 Motor assembly depth mm 44 Motor assembly diameter mm 120 Screw fitting DIN 7984, 4mm Terminal mm + : 6.3 x 0.8 / - : 4.8 x 0.8 Shipping weight /net weight (one piece) kg 3.76 / 3.44 Shipping box size (pair) mm 210 / 140 / 210
Thiele/Small Parameters Sensitivity (2.83V / 1m) dB 93 Lp Resonance frequency Hz 57 Fs Equivalent volume of air L 15.5 Vas Effective piston area cm² 133 Sd Suspension compliance mm/N 0.56 Cms Mechanical resistance kg * s 1.32
Voice Coil Data Linear excursion mm +/- 5 Xmax Voice coil former material Ti Voice coil inductance mH 0.19 Le
Frequency Response [dB] Impedance [Ohm] Harmonic Distortion [%]
|
