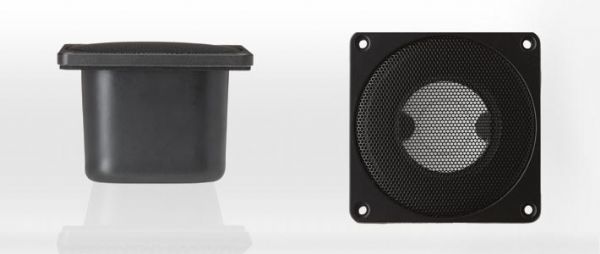

Accuton C50-8-044 陶瓷中音

C50-8-044

The C50 – 8 – 044 is a high – midrange driver with ultra hard ceramic dome in a 106 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the 19 kHz dome resonance. An overhung motor design with vented aluminium voice coil former guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with distinctive linearity. We recommend an application above 800 Hz.

MAIN FEATURES:SPECIAL DOME CUTOUTS
OVERHUNG MOTOR DESIGN
SOFT FABRIC SURROUND
VENTED VC & POLE PIECE
FERROFLUID FILLING
800 HZ - 12 KHZ

Mechanical Data
Overall diameter/square
mm
106
Cutout diameter/square
mm
88
Frontplate depth
mm
5.5
Overall depth
mm
67.5
Motor assembly depth
mm
Motor assembly diameter
mm
Screw fitting

DIN 7984, 4mm
Terminal
mm
+ : 4.8 x 0.8 / - : 2.8 x 0.8
Shipping weight /net weight (one piece)
kg
0.98 / 0.88
Shipping box size (pair)
mm
130 / 130 / 190
Thiele/Small Parameters
Sensitivity (2.83V / 1m)
dB
89
Lp
DC-resistance
Ohm
8.0
Re
Resonance frequency
Hz
380
Fs
Equivalent volume of air
Vas
Mechanical Q

1.08
Qms
Electrical Q

2.32
Qes
Total Q

0.74
Qts
Effective piston area
cm²
23.8
Sd
Moving mass
1.19
Mms
Suspension compliance
mm/N
0.147
Cms
Mechanical resistance
kg * s
2.64
Voice Coil Data
Power handling
Watt
120
Linear excursion
mm
+/- 0.75
Xmax
Voice coil diameter
mm
30.5

Voice coil former material

Al

Voice coil material

Cu

Voice coil inductance
mH
0.04
Le
Force factor
N/A
3.13
Bl
Motor type

Overhung

Ferrofluid filling

yes

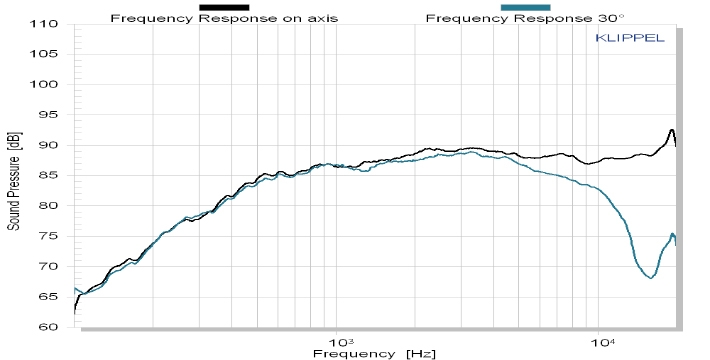

Frequency Response [dB]

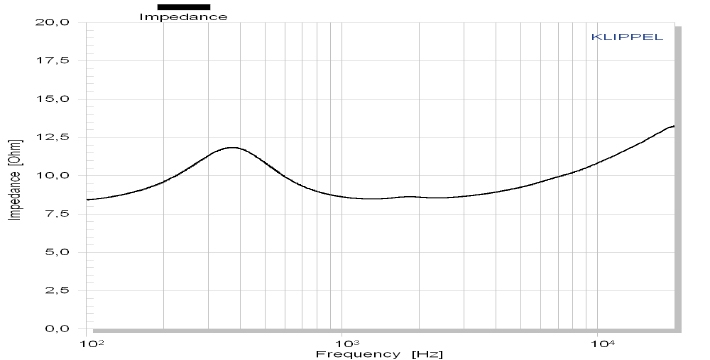

Impedance [Ohm]

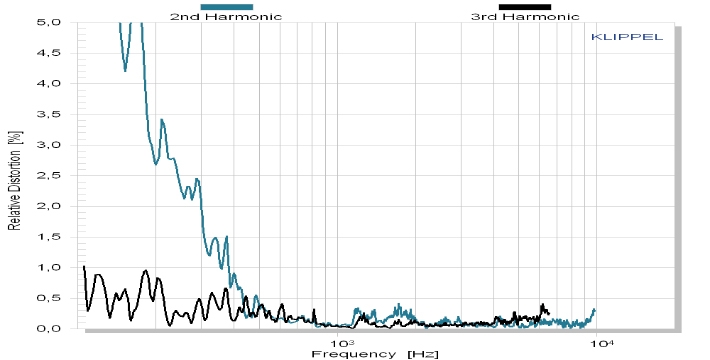

Harmonic Distortion [%]


Harmonic Distortion [%]
