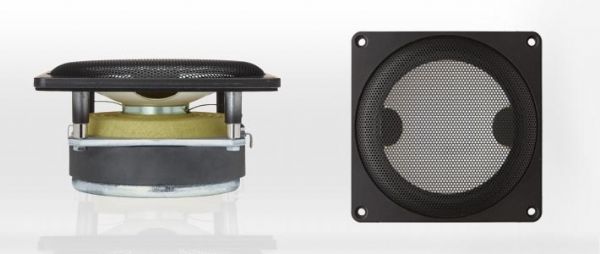

Accuton C90-6-079 陶瓷中音
.The C90 - 6 - 079 is a 5 inch midrange driver with ultra hard ceramic dome. Anti-resonant cutout fills in the ceramic dome provide for damping of the 8 kHz dome resonance. A FEA optimized overhung motor design with 38 mm aluminium voice coil former and ferrofluid filling guarantees excellent heat transfer. The low mass inverted fabric surround and a thin fabric spider center the moving parts with high linearity.As a typical home stereo midrange driver, we recommend our C90 - 6 - 079 for an application from 250 Hz – 5000 Hz.
C90-6-079
Ceramic Midrange
DOMEMATERIAL:Ceramic
APPLICATION:Midrange
NOMINAL DIAMETER:130 mm
SENSITIVITY:87.5 dB
MAIN FEATURES:SPECIAL DOME CUTOUTS
OVERHUNG MOTOR DESIGN
38 MM ALUMINIUM VC FORMER
INVERTED THIN FABRIC SURROUND
VENTED POLE PIECE & SPIDER
250 HZ - 5 KHZ IN CLOSED BOX
Mechanical Data
Overall diameter/square
mm
130
Cutout diameter/square
mm
111
Motor assembly depth
mm
32
Motor assembly diameter
mm
102
Screw fitting
DIN 7984, 4mm
Terminal
mm
+ : 6.3 x 0.8 / - : 4.8 x 0.8
Shipping weight /net weight (one piece)
kg
2.0 / 1.8
Shipping box size (pair)
mm
180 / 180 / 240
Thiele/Small Parameters
Sensitivity (2.83V / 1m)
dB
87.5
Lp
Resonance frequency
Hz
105
Fs
Equivalent volume of air
L
3.2
Vas
Effective piston area
cm²
75
Sd
Suspension compliance
mm/N
0.39
Cms
Mechanical resistance
kg * s
4.2
Rms
Voice Coil Data
Power handling
Watt
120
P
Linear excursion
mm
+/- 2.6
Xmax
Voice coil diameter
mm
38
Voice coil former material
Al
Voice coil inductance
mH
0.12
Le

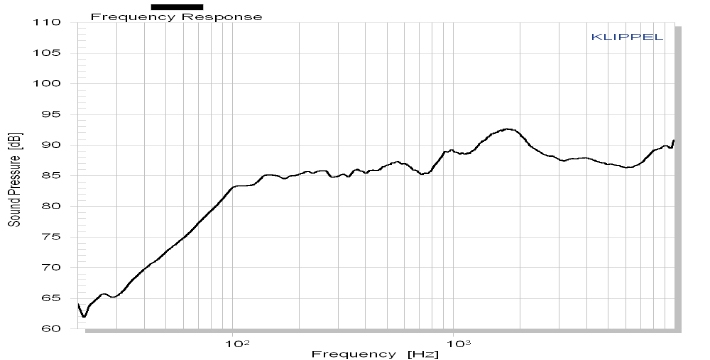

Frequency Response [dB]
 diameter/square
mm
130
Cutout diameter/square
mm
111
Motor assembly depth
mm
32
Motor assembly diameter
mm
102
Screw fitting
DIN 7984, 4mm
Terminal
mm
+ : 6.3 x 0.8 / - : 4.8 x 0.8
Shipping weight /net weight (one piece)
kg
2.0 / 1.8
Shipping box size (pair)
mm
180 / 180 / 240

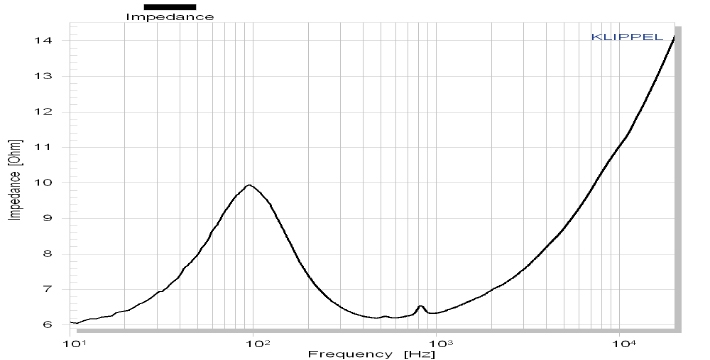

Impedance [Ohm]
